RPAP5(PE-RT/AL/PE-RT)

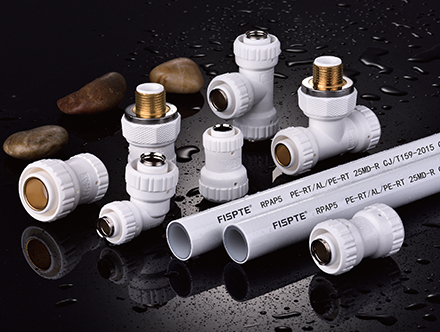

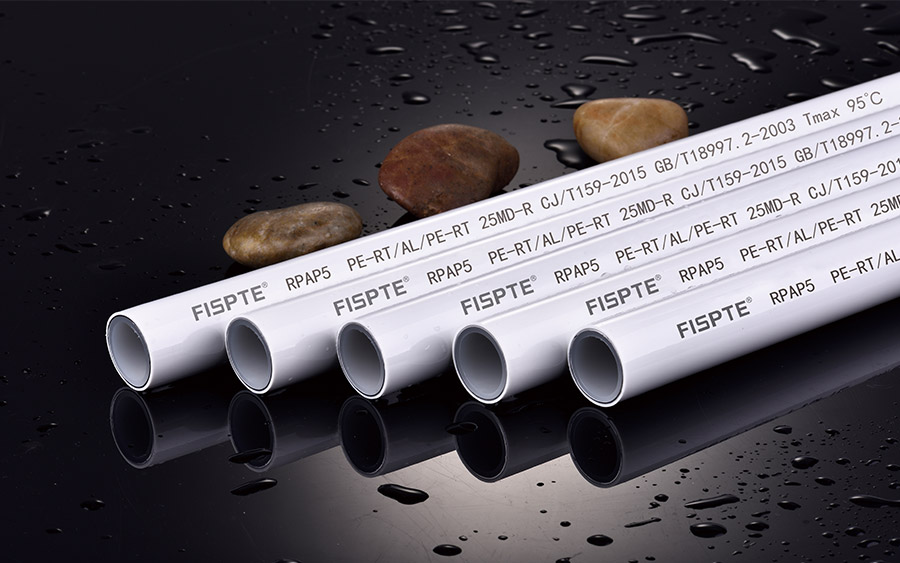

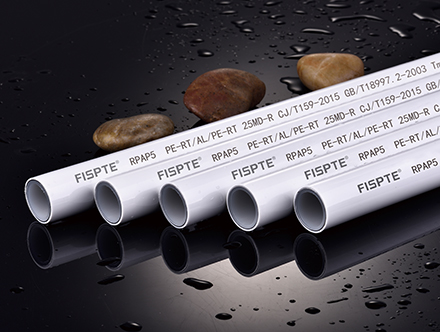

     RPAP5 aluminum-plastic pressure pipe is made of PE-RT pipe special material from South Korea SK company. The pipe material and the pipe fittings use the same material; the pipe fitting welding port is a double-layer ring wall structure socket, which is respectively welded to the inner and outer layers of the pipe; the socket has a built-in bushing , During welding, the bushing has a supporting effect on the inner wall, so that the pipe and the pipe fittings are well fused and connected together. The connection is firm, no leakage, no corrosion, and high strength. It is an innovation and method of aluminum-plastic pressure pipe connection technology and method. breakthrough.

翻译结果

Features:

●Sturdy connection-double-layer hot-melt connection, never leaking.

The socket of the pipe fitting is hot-melt connected with the inner and outer layers of the pipe, the pipe and the pipe fitting are integrated, and the strength of the joint is higher than that of the pipe itself.

● Fast installation-improve construction efficiency

Only need a full circle, no chamfering, fast installation speed, high pass rate of one-time installation

●The joint can be buried in the dark-flexible construction plan

The hot-melt joint is safe and reliable, and can be buried in the wall or floor filling layer, which is convenient for the design and installation of the piping system.

Application areas:

RPAP5 aluminum-plastic pressure pipes can be applied to cold and hot water systems in buildings, high-temperature radiator heating systems, air-conditioning systems, ground source heat pump systems, floor heating systems, medical and food companies, etc., such as the application of anti-ultraviolet pipes.
