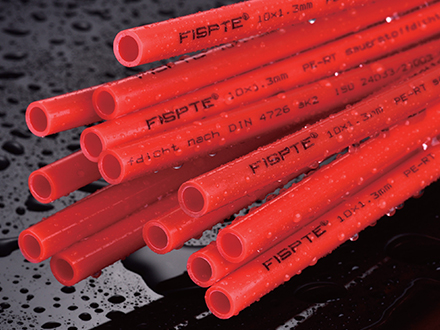

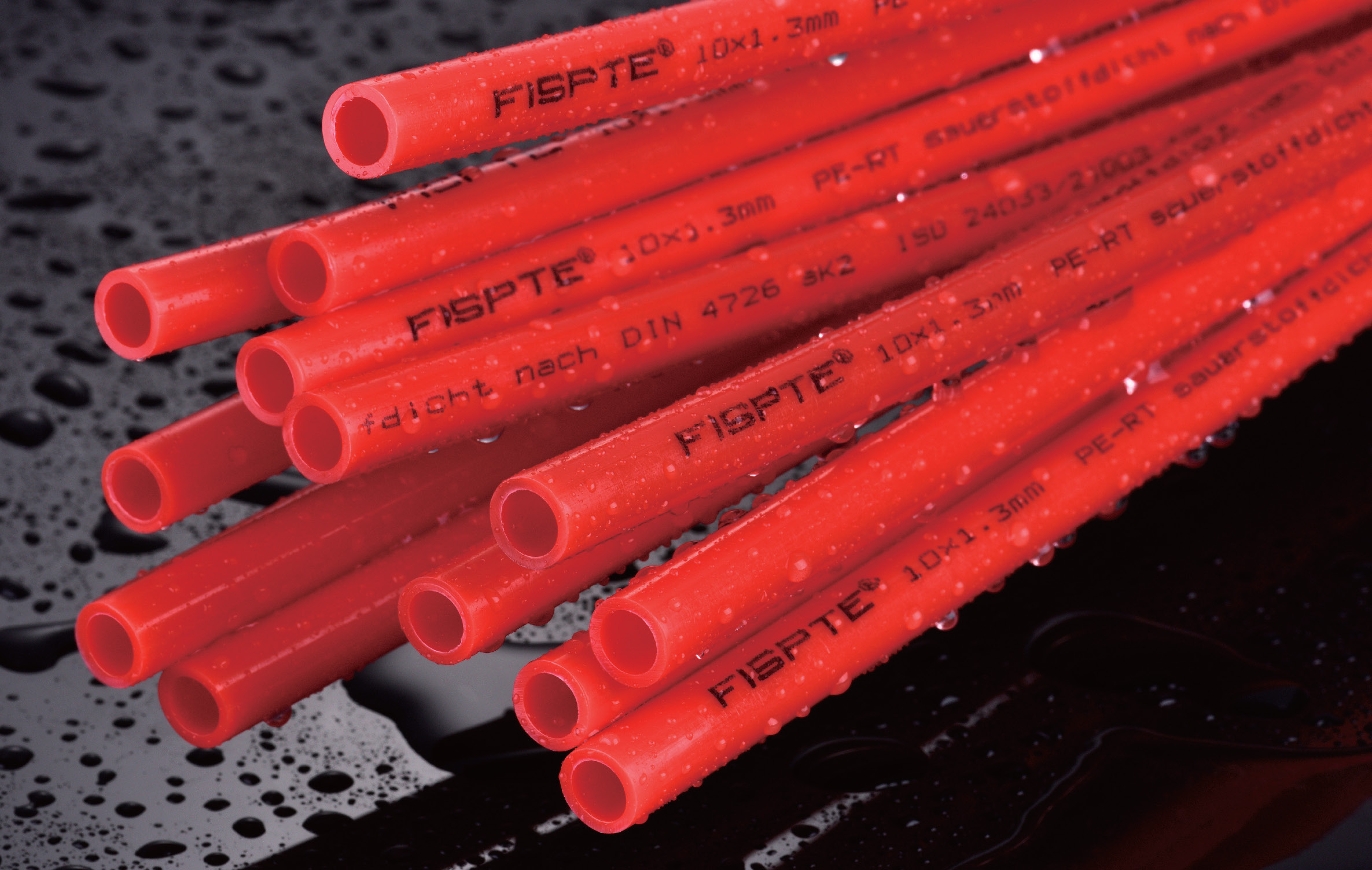

PE-RTCapillary series

product description

The capillary net generally uses water as the medium to transport energy, which has the characteristics of high efficiency, energy saving and high comfort. The capillary net can be combined with the decorative layer and installed on the ceiling,

The floor or wall spreads energy evenly, just like capillaries in the skin that gently regulate the indoor temperature. The energy transfer between the user and the room surface

The delivery is done by means of radiation. Because the heat exchange area is large, it can enter even when the temperature difference between the heat exchange surface and the indoor air is small.

Great energy exchange. When heating, the water temperature in the system only needs low-temperature hot water of 28-32°C. The surface temperature of the heat exchange is absolutely uniform and the surface temperature

Below 29°C allowed by European standards.

Features

●High comfort

Because the capillary network is composed of parallel capillaries with small spacing, the heat radiation exchange area is very large, there is basically no temperature difference on the ground, and the feet feel better!

●Flexible installation

The capillary net is light, thin, soft, and has a small load. It is convenient to install in combination with the decorative layer. It can not only be installed on the ground, but also can be considered when the ground blocking rate is large.

Install on the wall or ceiling.

●Good energy saving effect

Ordinary floor heating supply and return water temperature is generally 55 ℃ -45 ℃; capillary network supply and return water temperature is generally 35 ℃ -30 ℃, more than 30% energy saving than ordinary floor heating, energy saving is significant.

Application field

It is suitable for demanding floor heating systems, high-end villas, clubs, hotels, etc.
