PP-R Nano-Antibacterial

      Phippt's nano antibacterial PP-R hot and cold water pipes and pipe fittings are a new type of environmentally friendly green products based on PPR pipes. They are high-performance pipes produced at low temperature and high speed through compound co-extrusion through special processes and equipment. The tube has a two-layer structure, and an antibacterial agent with silver ions as an effective ingredient is added to the inner tube wall. This material kills bacteria by destroying the respiratory system and cell wall functions of microorganisms. At the same time, its molecular structure contains hydroxyl groups. The negative effect of halogen atoms significantly increases the acidity of the hydroxyl group, strengthens the sterilization ability, and has a high-efficiency and broad-spectrum sterilization effect, thereby improving the quality of the water passing through the pipe. It is a veritable green product.

Features

      Hygienic and non-toxic: This product is a green building material and can be used for pure water and drinking water pipeline systems, corrosion-resistant, non-scaling, low transportation resistance, and stable flow

     Beautiful appearance, smooth inner and outer walls of the product, small fluid resistance, soft color and beautiful appearance; medium and long-term working water temperature of civil construction projects ≤70℃, maximum water temperature ≤80℃, system working pressure up to 0.8MPa, heat preservation and energy saving, thermal conductivity of the product is only One percent of the metal pipe is used for hot water pipe insulation and energy saving effect; light weight, specific gravity is only 1/8 of steel, easy to transport and install; installation adopts hot melt connection, convenient, reliable, environmentally friendly, Safe; long service life, under normal pressure and temperature, the service life can reach 50 years.

High-quality brass, safe and environmentally friendly

No cracking-the insert is made of HPd59-1 environmentally friendly brass, refined by the red punching process, the copper part is enlarged, the wall thickness is increased, and the pressure bearing capacity is far better than the international standard. Never fall off -12 anti-slip teeth design to ensure that the insert and the plastic part are closely connected, regardless of thermal expansion or contraction, they will never fall off! Over-twisting protection-the bottom of the thread is designed with an anti-over-twisting retaining ring to prevent cracking caused by over-twisting the thread.

Application field

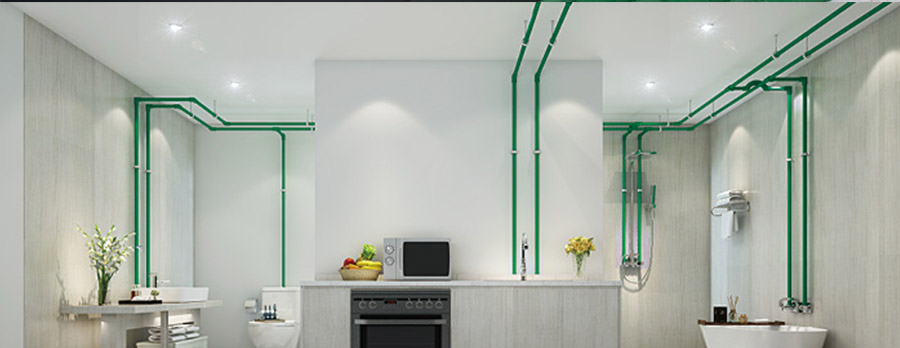

      Residential hot and cold water piping system

      Pure water, drinking water pipeline

      Compressed air pipe

      Other industrial and agricultural pipes
